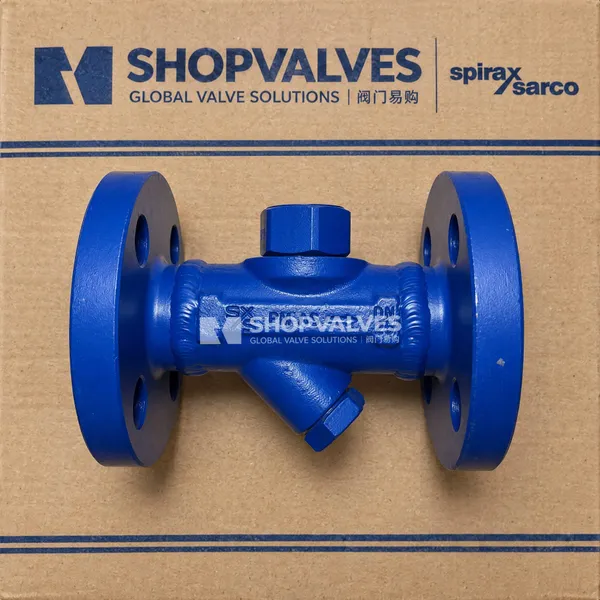

Spirax Sarco Spirax Sarco TD42S2/TD42S2LC Thermodynamic Steam Traps
Brand authorization
- Rapid response service
- Professional team support
- Flexible return and exchange policy
Description
Spirax Sarco Spirax Sarco TD42S2 thermodynamic steam traps with forged steel body and socket welded connections. The TD42S2LC model is available in all sizes in a small-displacement design for steam main and tracer line trapping.
Available Models
| Available types | SKU |
|---|---|
| 1/2" TD42S2LC | 6190300IN |
| 1/2" TD42S2 | 6190000IN |
| 3/4" TD42S2LC | 6190400IN |
| 3/4" TD42S2L | 6190100IN |
| 1" TD42S2LC | 6190500IN |
| 1" TD42S2 | 6190200IN |
Standards and Certificates
This product complies with the European Pressure Equipment Directive 97/23/EC and can be supplied with a certificate EN 10204 3.1, if a certificate is required please specify when ordering.
Sizes and pipe connections
Available in ½" LC, ¾" LC, 1" LC, ½", ¾", and 1" diameters with socket weld connections to ANSI B16.11 Sch 80/BS3799 Class 3000 Ib.
Optional accessories
- heat shield: It prevents the trap from losing too much heat and operating too frequently due to exposure to low temperatures or the elements.
- Integral Drain Valve: Filter cover can be drilled and tapped 3/8" BSP or NPT for installation of drain valve BDV1 or BDV2.
Scope of work and constraints
The product has a prohibited use area. Prolonged application above 425°C may result in the conversion of the steel's carbon phase compounds to graphite, and prolonged use above this temperature is permitted but not recommended.
| Valve body design conditions | ANSI/ASME 300 |
|---|---|
| PMA Maximum Allowable Pressure | 51 bar g@38°C |
| TMA Maximum Allowable Temperature | 427°C@28 bar g |
| Minimum permissible temperature | 0°C |
| PMO Maximum Working Pressure | 42 bar g |
| TMO Maximum Operating Temperature | 400°C@34bar g |
| Minimum working temperature | 0°C (below this temperature, consult Spirax Sarco) |
| ΔPMX Maximum Working Differential Pressure | 42 bar g |
| PMOB maximum working back pressure is 80% of upstream pressure | |
| The minimum inlet pressure for normal operation is | 0.25 bar g |
| Design maximum cold hydraulic test pressure | 76 bar g |
material (that sth is made of)

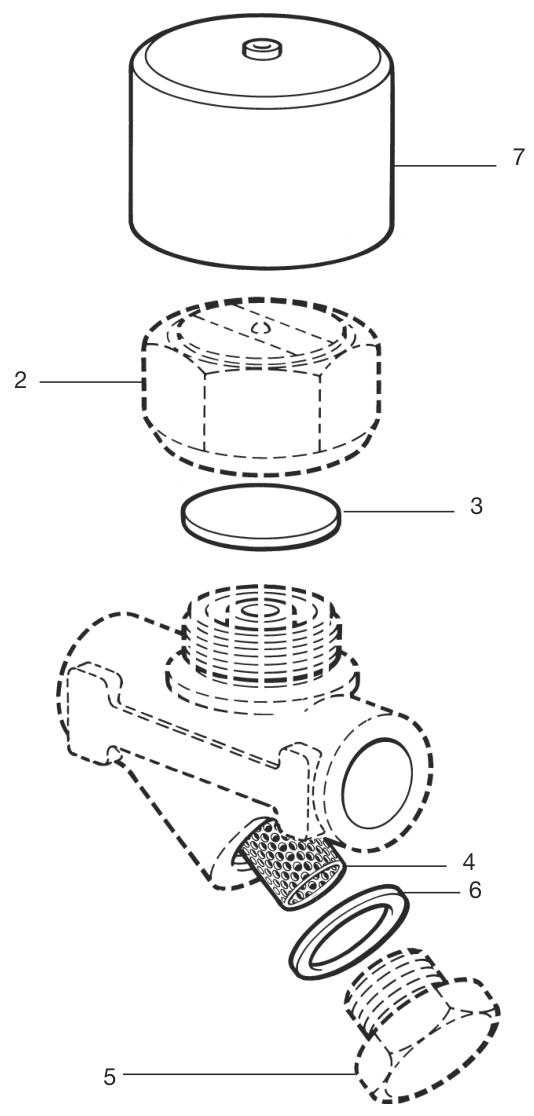

| Item | Part | material (that sth is made of) |
|---|---|---|
| 1 | valve body | Steel (ASTM A105N) |
| 2 | bonnet | Stainless steel (AISI 416) |
| 3 | compact disc | Stainless steel (BS 1449 420 S45) |
| 4 | filter | Stainless steel (AISI 316L) |
| 5 | Filter cover | Carbon Steel (ASTM A105N) |
| 6 | Filter cover gasket | Stainless steel (BS 1449 304 S16) |
| 7 (optional) | heat shield | aluminum (chemistry) |
engine displacement (volume of air fuel mixture drawn in during one cycle)
When selecting the TD42S2, it is important to choose the right model to ensure proper operation and long service life. For main and tracer line traps, select the LC (low-capacity) trap regardless of the pipe diameter.
weights
| caliber | Weight (kg) |
|---|---|
| ½" | 0.80 |
| ½"LC | 0.75 |
| ¾" | 1.00 |
| ¾"LC | 1.00 |
| 1" | 1.50 |
| 1 "LC | 1.50 |
Security information, installation and maintenance
Refer to the Installation and Maintenance Guide (IM-P068-37) supplied with the product for detailed information.The TD42S2 should be mounted horizontally with a section of drop pipe in front of the valve and may be mounted and operated in other orientations.
deal with
This product can be recycled and will not cause environmental pollution if handled properly.
Ordering Instructions
Example: 1 - ½" Spirax Sarco TD42S2LC Thermodynamic Steam Trap with socket weld connections and heat shield.
