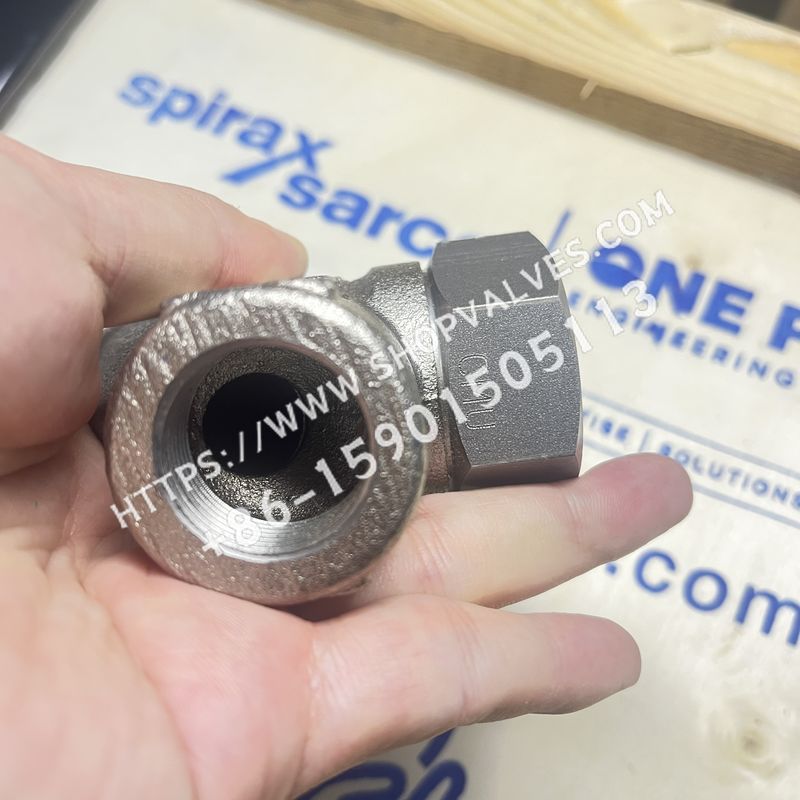

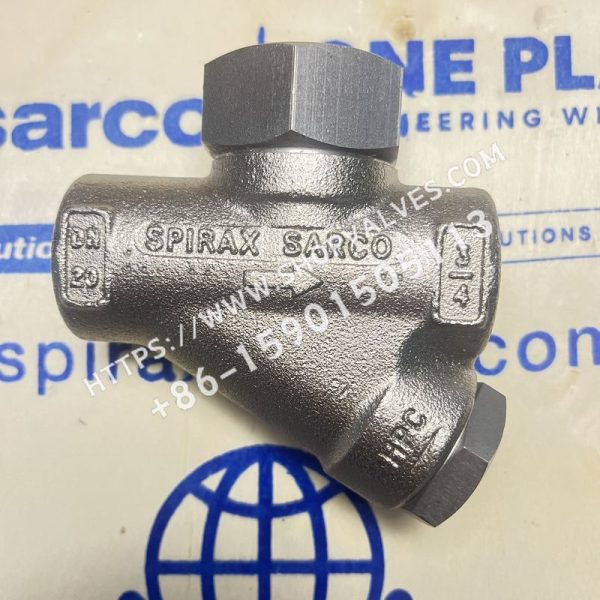

Spirax Sarco TD42L/TD42H NPT Thermodynamic Steam Trap
Brand authorization
- Rapid response service
- Professional team support
- Flexible return and exchange policy
Description
Spirax Sarco TD42L and TD42H thermodynamic steam traps are serviceable traps; the TD42L is calibrated for relatively small condensate discharge and is primarily used for main line trapping; the TD42H is used for process load trapping. For applications requiring air removal, the TD42LA and TD42HA models with anti-air lock discs are available. The outer surface of the body of this series of traps is ENP nickel-plated, providing energy-saving and oxidation-resistant features.
Available Models
| Available types | SKU |
|---|---|
| 1/2" TD42L | 10680700 |
| 3/4" TD42L | 10683700 |
| 1" TD42L | 10683800 |
| 1/2" TD42H | 1534000 |
| 3/4" TD42H | 1534100 |
| 1" TD42H | 1534500 |
Sizes and pipe connections
- TD42L: 3/8", ½", ¾" and 1" Screwwed BSP or NPT
- TD42H: ½", ¾" and 1" Screwwed BSP or NPT
- TD42LA: 3/8", ½", ¾" and 1" Screwwed BSP or NPT
- TD42HA: ½", ¾" Screwed BSP or NPT
Optional Accessories
- heat shield: This prevents the trap from being exposed to low temperatures or wind and rain, which can cause excessive heat loss and lead to frequent operation.
- Integral Drain Valve: Filter caps can be drilled and tapped for 3/8" BSP or NPT connections to drain valves such as BDV1 or BDV2.
Limitations (ISO 6552)
- Maximum valve body design conditions: PN 63
- PMA Maximum Allowable Pressure: 63 bar g@100°C
- TMA Maximum Allowable Temperature: 400°C @ 42 bar g
- Minimum permissible temperature: not clearly labeled (this information is missing from the original content of the document)
- PMO Maximum Working Pressure: 42 bar g
- TMO Maximum Operating Temperature400°C @ 42 bar g for TD42L & TD42H; 255°C @ 42 bar g for TD42LA & TD42HA.
- PMOB Maximum Working Back Pressure: 80% of upstream pressure or valve will not close
- Minimum inlet pressure for normal operation0.25 bar for TD42L & TD42H; 0.80 bar for TD42LA & TD42HA
- Design cold state maximum hydraulic test pressure: 95 bar g
material (that sth is made of)
| Item | Part | material (that sth is made of) |
|---|---|---|
| 1 | valve body | Stainless steel (ENP finish) ASTM A743 Gr.CA 40F, BS 1449 420 S45, BS 1449 304 S16, AISI 416 |
| 2 | bonnet | stainless steels |
| 3 | filter | stainless steels |
| 4 | Filter cover | stainless steels |
| 5 | Filter cover gasket | stainless steels |
| 6 | compact disc | stainless steels |
| 7 | Heat shield (optional) | aluminum (chemistry) |
weights
| caliber | Weight (kg) |
|---|---|
| 3 / 8 "L | 0.80 |
| ½"L | 0.75 |
| ¾"L | 0.95 |
| 1 "L | 1.50 |
| ½"H | 0.80 |
| ¾"H | 1.00 |
| 1 "H | 1.50 |
Certification
Standard test certificates are available for this product and need to be specified when ordering.
Security information, installation and maintenance
Refer to the Installation and Maintenance Guide (IM-068-024) supplied with the product for detailed information. The trap should preferably be installed on a horizontal pipe with a small drop pipe upstream.
deal with
This product is recyclable and does not cause ecological problems when disposed of properly.
Ordering Instructions
Example: 1 - Spirax Sarco ½" TD42L thermodynamic steam trap with threaded connection BSP.
