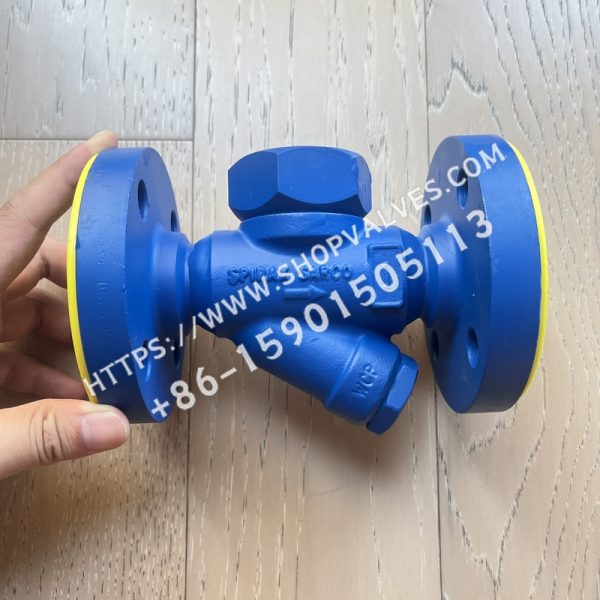

Spirax Sarco TD32F Flanged Thermodynamic Steam Trap
Brand authorization
- Rapid response service
- Professional team support
- Flexible return and exchange policy
Description
Spirax Sarco TD32F flanged thermodynamic steam traps are serviceable medium-pressure thermodynamic steam traps with built-in strainer and flanged connections for medium pressures. The TD32FLC is especially designed to trap low loads, such as steam mains, while the TD32FA and TD32FALC have built-in anti-air lock discs for air venting during start-up.
Available Models
| Available types | SKU |
|---|---|
| TD32F DN15 PN40 | 0683166 |
| TD32F DN20 PN40 | 0683369 |
| TD32F DN25 PN40 | 0683468 |
| TD32FLC DN15 PN40 | 0683263 |
| TD32FLC DN20 PN40 | 0683382 |
| TD32FLC DN25 PN40 | 0683483 |
(an official) standard
This product complies with the European Pressure Equipment Directive 97/23/EC.
Certification
This product can be supplied with EN10204 3.1 certificate (Note: If certificate is required, please specify when ordering).
Sizes and pipe connections
DN15, 15LC, 20, 20LC, 25 and 25LC, flanges ANSI B 16.5 Class 150 and 300, DIN 2501 PN40 and JIS/KS 10, 16, 20.
Other options
Heat shield (DN15 and DN20 only): Prevents excessive heat loss in low-temperature, stormy environments, which can lead to frequent trap operation.
Limitations (ISO 6552)
| Valve body design conditions | PN40 |
|---|---|
| PMA - Maximum Allowable Pressure | 40 bar g |
| TMA - Maximum Allowable Temperature | 400 °C |
| Minimum permissible temperature | 0 °C |
| PMO - Maximum Working Pressure | 32 bar g |
| TMO - Maximum Operating Temperature | TD32F and TD32FLC: 400 ℃; TD32A and TD32FALC: 255 ℃. |
| Minimum working temperature | 0 °C |
| Minimum working pressure | 0.25 bar g |
| PMOB maximum working back pressure is 80% of upstream pressure | - |
| Design maximum cold hydraulic test pressure | 60 bar g |
Scope of work
There are areas where the product cannot be used, and the range of application varies from model to model.
material (that sth is made of)
| Item | Part | material (that sth is made of) |
|---|---|---|
| 1 | valve body | Stainless Steel ASTM A743 CA - 40 |
| 2 | bonnet | Stainless steel AISI 416 |
| 3 | compact disc | Stainless steel BS 1449 420 S45 |
| 4 | filter | Stainless steel ASTM A240 316L (100 mesh filter for TD32FA and TDFALC, 0.8mm filter for other models) |
| 5 | Filter cover | Stainless steel AISI 416 |
| 6 | Filter cap gasket | Stainless steel BS 1449 304 S16 |
| 7 | Heat shield (optional, DN15 and 20 only) | aluminum (chemistry) |
| 8 | flangeless | Steel DIN 17243 C22.8 Ws 1.0460 |
weights
| caliber | Weight (kg) |
|---|---|
| DN15 and 15LC | 2.4 |
| DN20 and 20LC | 3.1 |
| DN25 and 25LC | 4.2 |
engine displacement (volume of air fuel mixture drawn in during one cycle)
Condensate discharge at different differential pressures is different, refer to the relevant charts (the discharge charts in the document do not describe the numerical relationship in detail, this is only for illustration).
Security information, installation and maintenance
For detailed information, please refer to the Installation and Maintenance Guide (IM - P068 - 26) supplied with the product.The TD32F is designed to be installed horizontally with the bonnet facing upwards; if there is back pressure downstream, it is recommended that a check valve be installed; if discharging to atmosphere, it is recommended that a silencer be installed downstream; and, for ease of maintenance, it is recommended that a globe valve be installed upstream and downstream of the trap.
take care of
This product can be recycled and will not cause environmental pollution if handled properly.
Ordering Instructions
Examples: 1 - Spirax Sarco DN15 TD32FALC Low Displacement Trap, PN40 Flange Connection, Built-in Strainer and Anti-Airlock Disc.
