Description

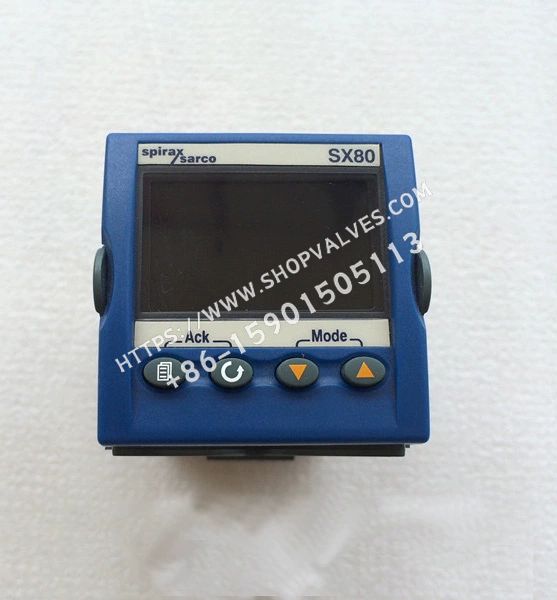

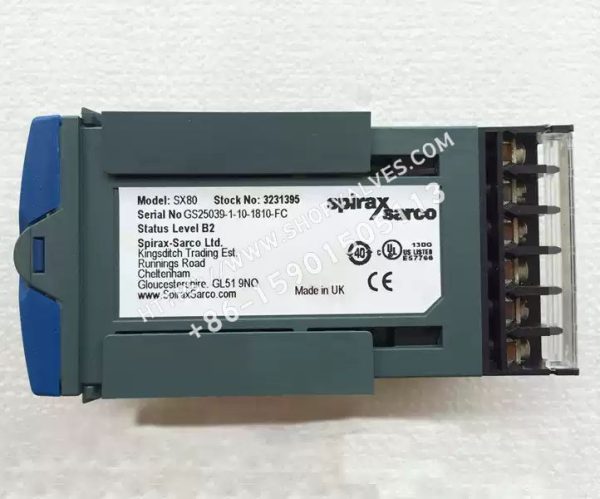

Spirax Sarco SX80 process controllers are 1/16 DIN panel mounted controllers for single and multiple set point control applications, for use with Spirax Sarco's range of pneumatically operated motorized control valves, electronic and electrical equipment. Each SX80 controller features VMD (3 point) and analog signal (4 - 20mA) outputs, and its quick-start code feature allows for easy field commissioning.
specificities
- Universal inputs - RTD, thermocouple, mA and mV.
- General Purpose Outputs - VMD (Valve Motor Drive), continuous mA and voltage, relays for on/off control and logic signals.
- Auxiliary Power - for external transmitters requiring 18VDC.
- Text Messages - can be set to scrolling text messages that can alert the user to the status of the process.
- Quick Code - 5-digit quick code for easy setup and debugging of the controller The controller can be easily installed and debugged.
accreditation
The controllers comply with 93/68/EEC and with EN61010 - 1:90 for the necessary protective conditions of electrical equipment.
- EMC emission standard: EN 61326 - 1: 1997 Class B (including amendments A1, A2 and A3).
- EMC immunity standard: EN61326 - 1: 1997 for industrial locations (including amendments A1, A2 and A3).
Technical Parameters
Overall technical parameters
| mounting |
Panel Mount 1/16 DIN |
| Supply power |
85 - 265Vac, 6W max. |

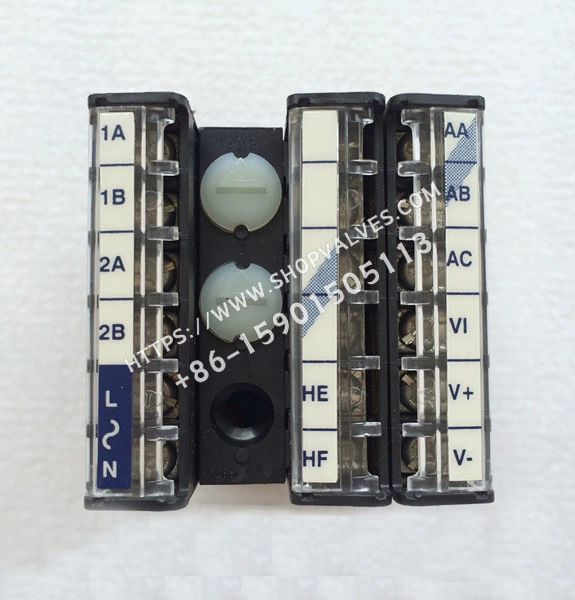

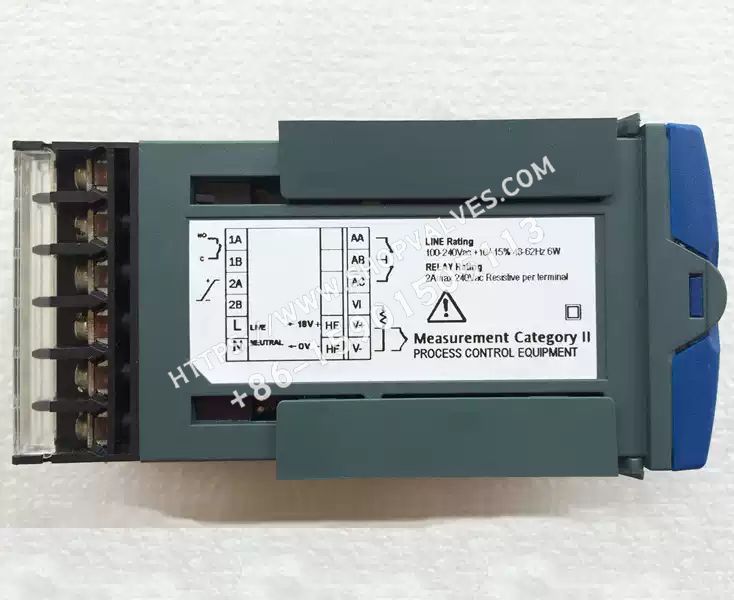

| electrical connection |
screwed end |
| Packaging grade |
IP65 - Insertion from front panel, NEMA 4X |
| Working temperature and humidity |
Temperature 0 - 55°C, Humidity 5% - 85% |
| matrix |
Cannot be used in explosive or corrosive environments |
| Electromagnetic Compatibility (EMC) |
EN 61326 |
| electrical safety |
BS EN 61010 Installation category II |
| weights |
250 grams |
| accreditation |
CE |
Process Variable Inputs
| Calibration accuracy |
<±0.25% (±1 lowest significant digit LSD) |
| resolution (of a photo) |
<0.5μV (1.6s filtering ) |
| Input Filtering |
Close to 59.9s |
| RTD |
Three-wire PT100, DIN43760 |
| Indicator current |
0.2mA |
| General purpose linear mA |
4 - 20mA, 0 - 20mA, using external shunt resistor 2.49Ω |
| Linear Input Range |
-10 - 80mV |
| thermocouples |
K,J,N,R,S,B,L,T,C, Customized |
| sampling frequency |
4Hz (250ms) |
| Cold End Accuracy |
<±1°C at 25°C ambient temperature |
| Linear mA accuracy |
<0.1% readings |
| Input Impedance |
100MΩ |
| Number of setpoints |
3 |
| user calibration |
Two-point gain and offset |
Transmitter Power Supply
| isolate |
300Vac double insulation |
| output voltage |
18V±15% |
| amps |
30mA max. |
| Load regulation |
<1V, 25mA |
control
| scale band |
1 - 9999 engineering units, 0.01 - 300, 0.1 - 3000 |
| Points time |
Close - 9999 |
| differentiation time |
Close - 9999 |
| error band |
One-time tuning or intrinsic frequency tuning. The controller will automatically select the best method depending on the process conditions. |
| auto-tuning |
Lag 0.01 - 300.0 or 0.1 - 3000 engineering units |
| switching control |
1 - 9999 engineering units, 0.01 - 300, 0.1 - 3000. |
| abate |
During the critical process, overshooting is minimized. |
| Auto/Manual Mode |
Selection from the keyboard |
relay (electronics)
| isolate |
300Vac double insulation |
| output range |
0 - 20mA, 4 - 20mA |
| resolution (of a photo) |
13.5bits |
| Contact class |
Maximum 2A resistance at 264Vac |
| Note: When relays use common terminals, the maximum current per terminal is 2A. (For AB terminals, maximum 2A). |
|
Insulated DC Output
| isolate |
300Vac double insulation |
| output range |
0 - 20mA, 4 - 20mA |
| resolution (of a photo) |
13.5bits |
Ordering Instructions
An SX80 process controller.
caveat
The installation and commissioning instructions supplied with the unit stipulate that the safe operation of the controller can only be guaranteed by proper installation, commissioning, use and maintenance by suitable professionals. It is the responsibility of the company's safety personnel to ensure that the product parameters and safety information contained in the installation and commissioning instructions are understood and observed.
