Spirax Sarco SRV66 Sanitary Pressure Reducing Valve
Brand authorization
- Rapid response service
- Professional team support
- Flexible return and exchange policy
Description

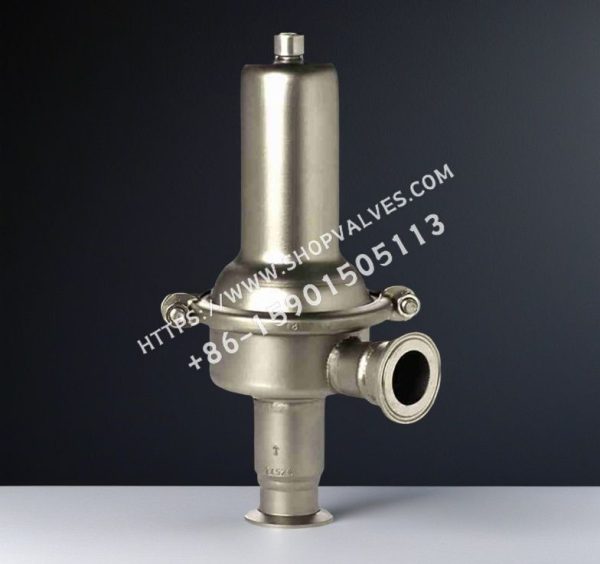

Spirax Sarco SRV66 Sanitary Pressure Reducing Valve is an angle connection, self-draining sanitary pressure reducing valve constructed of 316 stainless steel for use with steam, water, and chemically non-reactive gases. It is available with an ASME BPE sanitary clamp connection or with an ISO 2852 sanitary clamp. Stainless steel seals are standard, but models with FEPM soft seals are also available. No external pressure sensing tubing is required and Clean-in-Place (CIP) capability is available. Typical applications include clean steam, gas and liquid supplies to bioreactors, centrifuges, sterilizers, autoclaves, process tanks and clean equipment.
Valve Seal
Valve sealing class better than VD1/VDE 2174 (leakage rate < 0.5%Kv).
Standard surface polishing and cleaning
Media contact surfaces - (Ra<3.2 \mu m) ultrasonic cleaning. The following options are available on request and at a cost:
- Media contact surfaces machined to 0.8µm, mechanically polished, blow-dried and ultrasonically cleaned with demineralized water
- Media contact surface machined to 0.8µm, electrolytically polished
- Media contact surfaces machined to 0.4µm, electrolytically polished
- skim (milk)
- FDA Approved Diaphragm Material
Sizes and pipe connections
DN15, DN20, DN25, DN32 (ISO 2852 clamps only), DN40,DN50 ASME BPE or ISO 2852 sanitary clamp connections.
Pressure/Temperature Limits
See product documentation. This product must not be used in specific areas or out of range without damaging internal parts. See pressure setting ranges below for valve body design conditions inlet and outlet.
Kv value
For maximum control accuracy (especially for large load variations), use the KV value at 20% deviation. Use the maximum KV value for safety valve selection.
| Valve Caliber | Kv value at 20% deviation | Maximum Kv value |
|---|---|---|
| DN15 | 2.0 | 2.6 |
| DN20 | 3.0 | 3.9 |
| DN25 | 3.5 | 4.6 |
| DN32 | 4.0 | 5.2 |
| DN40 | 4.5 | 5.9 |
| DN50 | 5.2 | 6.8 |
weights
| Pressure range | caliber | weights |
|---|---|---|
| 1.0 - 5.0 bar | DN15 - DN25 | 2.5kg |
| 1.0 - 5.0 bar | DN32 - DN40 | 3.5kg |
| 0.8 - 2.5 bar | DN15 - DN25 | 3.0kg |
| 0.8 - 2.5 bar | DN50 | 3.0kg |
| 0.3 - 1.1 bar | DN32 - DN40 | 3.5kg |
| 0.3 - 1.1 bar | DN50 | 4.0kg |
Recommended Fluid Flow Rate
| fluids | Flow rate range |
|---|---|
| Steam (superheated) | 10 - 40 m/s |
| Vapor (saturated) | 15 - 60 m/s |
| Gas (less than) | not mentioned |
| Gas (greater than) | not mentioned |
| fluids | 1 - 5m/s |
Security information, installation and maintenance
See the Installation and Maintenance Guide (IM-P186-09) supplied with the product for details.
Installation Instructions
The SRV66 should be mounted so that the inlet is vertical and the spring chamber is up.
Ordering Instructions
Example: 1-SRV66 DN25 sanitary pressure reducing valve, pressure range 1 - 5 bar, ASME BPE sanitary clamp connection, PN10/PN6, stainless steel seal.
How to order
Available spares are diaphragms and O-ring assemblies. When ordering spare parts, order as described in the table of available spare parts above and specify the valve bore, type and pressure range. Example: 1-Diaphragm and O-ring assembly for pressure reducing valve DN25 SRV66, pressure range 1 - 5 bar.
