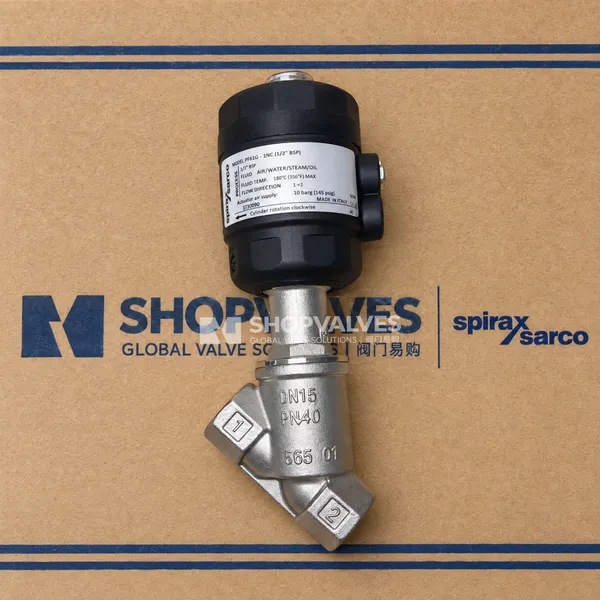

Spirax Sarco PF61G-2NC/PF61G-1NC/PF62G/PF63G/PF64G/PF65G Stainless Steel Pneumatic Piston Switch Angle Valve

Description

Spirax Sarco PF6 Stainless Steel Pneumatic Piston On/Off Angle Valve, 2-way pneumatic piston on/off angle valve, body is made of stainless steel, can be used for steam, water, air, oil and gas. A pneumatic signal is loaded on the actuator piston to switch the valve on and off, and the piston has a spring return function. Standard models and models with flow regulator are equipped with a valve position indicator. Standard models have PTFE stem seals for use up to 180°C, with optional high-temperature (H) stem seals for use up to 190°C. The standard models are available with a spring-return function.

Available Models

Available types	SKU
1/2" PF61G-1NC BSP	3730090
3/4" PF61G-1NC BSP	3730091
1" PF61G-2NC BSP	3730094
1 1/2" PF61G-2NC BSP	3730096
2" PF61G-2NC BSP	3730097
PF62G-2NC DN15 BW DIN11850	373400001
PF62G-2NC DN20 BW DIN11850	373400002
PF62G-2NC DN25 BW DIN11850	373400003
PF62G-2NC DN32 BW DIN11850	373400004
PF62G-2NC DN40 BW DIN11850	373400005
PF62G-2NC DN50 BW DIN11850	373400006
PF62G-4NC DN65 BW DIN11850	373400007
PF62G-2NC DN15 With PN16 Flange	373400011
PF62G-2NC DN20 With PN16 Flange	373400012
PF62G-2NC DN25 With PN16 Flange	373400013
PF62G-2NC DN32 With PN16 Flange	373400014
PF62G-2NC DN40 With PN16 Flange	373400015
PF62G-2NC DN50 With PN16 Flange	373400016
PF62G-4NC DN65 With PN16 Flange	373400017

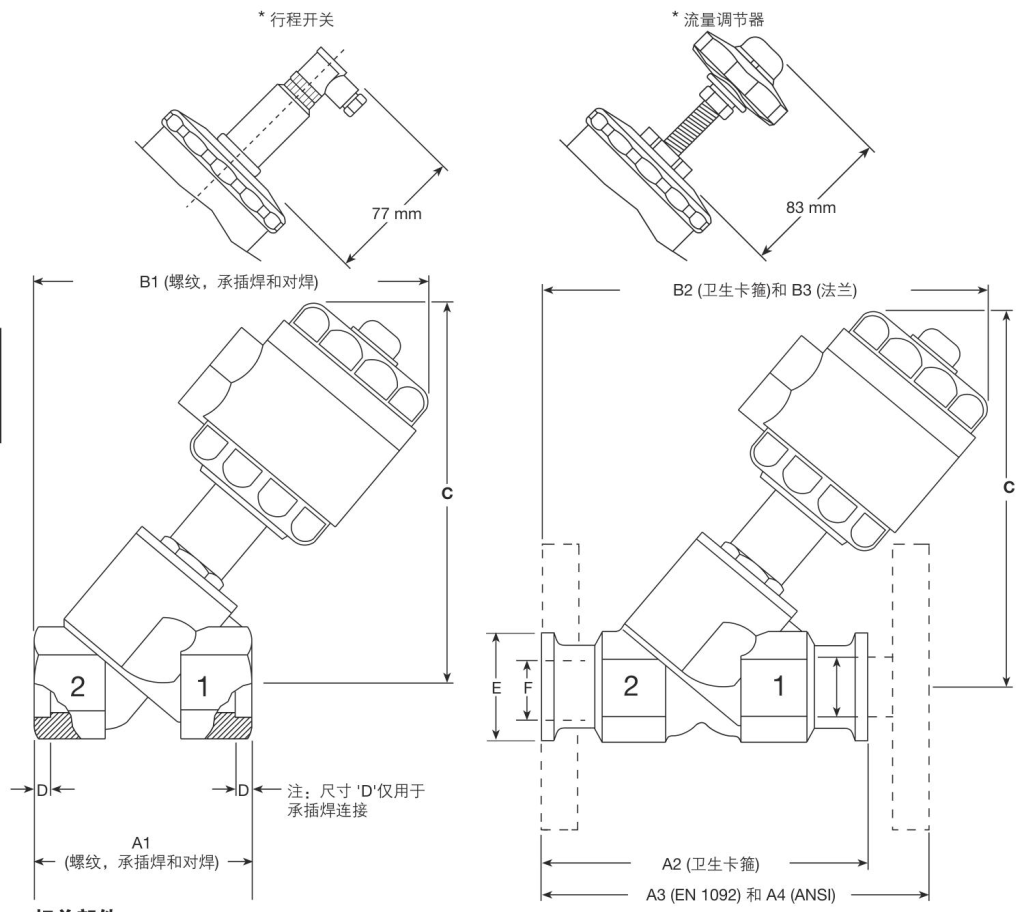

Actuator size and mode of action

Three sizes of actuators are available: Type 1 (45mm), Type 2 (63mm) and Type 3 (90mm) with the following modes of action:

• NC (Normally Closed): Fluid flows over the valve seat (1 - 2). Note: Not suitable for use where water hammer may occur.
• NO (Normally Open): Fluid flows under the valve seat (2 - 1) and can be used for liquids to prevent water hammer.
• BD (Bidirectional Flow, Normally Closed): For liquid special applications requiring bidirectional flow and protection against water hammer, with fluid flowing from below the valve seat (2 - 1). NOTE: To prevent water hammer in liquid applications, the pressure should not exceed 1 bar g when fluid is flowing from above the valve seat (1 - 2).

Availability

Valve Action Method	Threaded (BSP or NPT)	butt welding	Flange (EN 1092 or ASME)	socket welding	Sanitary Clamps
NC - Normally closed (from above seat)	PF61G - 1NC PF61G - 2NC PF61G - 3NC	PF62G - 1NC PF62G - 2NC PF62G - 3NC	PF63G - 2NC PF63G - 3NC	PF64G - 1NC PF64G - 2NC PF64G - 3NC	PF65G - 1NC PF65G - 2NC PF65G - 3NC
NO - Normally open (from below seat)	PF61G - 1NO PF61G - 2NO PF61G - 3NO	PF62G - 1NO PF62G - 2NO PF62G - 3NO	PF63G - 2NO PF63G - 3NO	PF64G - 1NO PF64G - 2NO PF64G - 3NO	PF65G - 1NO PF65G - 2NO PF65G - 3NO
BD - Bidirectional flow, normally closed (from below seat)	PF61G - 1BD PF61G - 2BD PF61G - 3BD	PF62G - 1BD PF62G - 2BD PF62G - 3BD	PF63G - 2BD PF63G - 3BD	PF64G - 1BD PF64G - 2BD PF64G - 3BD	PF65G - 1BD PF65G - 2BD PF65G - 3BD

Kvs value

caliber	DN15	DN20	DN25	DN32	DN40	DN50
caliber	½"	¾"	1"	1¼"	1½"	2"
Kvs	4.5	8.0	15.6	24.6	42.0	57.0

Conversion formula: Cv (UK) = Kv x 0.963; Cv (US) = Kv x 1.156

material (that sth is made of)

Serial number parts	material (that sth is made of)
1	Valve body: stainless steel AISI 316L
2	Bonnet: Stainless steel AISI 316L
3	Valve plug: stainless steel AISI 316L
4	Plug seal: TFM 1600
5	Stem: Stainless steel AISI 316L
6	Stem seals - standard: PTFE + V-FKM Stem Seal - Option H: 25% Carbon Graphite Filled PTFE
7	Stem 'O' ring: Fluorinated rubber
8	Shaft actuator housing - (for PA66 type H) 30% polyamide glass
9	Piston: 50% polyamide glass
10	Piston lip seal: Oxidized rubber
11	Gasket: PTFE
12	'O' ring: Fluorinated rubber

△PMX - PF6 Pneumatic Piston Angle Valve Maximum Differential Pressure

1. For use with saturated steam, a maximum differential pressure of 11.5 bar g is possible.
2. Sanitary clamps are required to meet a PN 10 pressure rating.
3. ASME flanged connections are ASME 150 pressure rating.

Available types	Valve Caliber	Actuator diameter (mm)	direction of flow	Maximum differential pressure (bar)	Pilot medium pressure
				minimal	greatest
PF6_G - 1NC	DN15 - (½")	45	Above the valve seat	1.8	10
	DN20 - (¾")	45	Above the valve seat	1.8	10
PF6_G - 2NC	DN15 - (½")	63	Above the valve seat	1.5	10
	DN20 - (¾")	63	Above the valve seat	1.5	10
	DN25 - (1")	63	Above the valve seat	1.5	10
	DN32 - (1¼")	63	Above the valve seat	2.8	10
	DN40 - (1½")	63	Above the valve seat	2.8	10
	DN50 - (2")	63	Above the valve seat	2.8	10
PF6_G - 3NC	DN25 - (1")	90	Above the valve seat	1.0	8
	DN32 - (1¼")	90	Above the valve seat	2.8	8
	DN40 - (1½")	90	Above the valve seat	2.8	8
	DN50 - (2")	90	Above the valve seat	2.8	8
PF6_G - 1NO	DN15 - (½")	45	Below the valve seat	1.8	10
	DN20 - (¾")	45	Below the valve seat	1.8	10
PF6_G - 2NO	DN15 - (½")	63	Below the valve seat	1.5	10
	DN20 - (¾")	63	Below the valve seat	1.5	10
	DN25 - (1")	63	Below the valve seat	1.5	10
	DN32 - (1¼")	63	Below the valve seat	1.5	10
	DN40 - (1½")	63	Below the valve seat	1.5	10
	DN50 - (2")	63	Below the valve seat	1.5	10
PF6_G - 3NO	DN25 - (1")	90	Below the valve seat	1.0	8
	DN32 - (1¼")	90	Below the valve seat	1.0	8
	DN40 - (1½")	90	Below the valve seat	1.0	8
	DN50 - (2")	90	Below the valve seat	1.0	8

Related Components - Solenoid Valves

DM 2-position 3-way solenoid valves can be directly mounted (banjo type connection) on PF61G - NC, NO and BD series pneumatically operated on/off angle valves for air or water operating media. The valves are DIN type connections.

Available types	typology	actuators	Voltage/Frequency	connection method
DM11	-	45 mm	230/50 or 240/60 Vac.	1/8" BSP
DM12	-	45 mm	110/50 or 120/60 Vac	1/8" BSP
DM13	-	45 mm	24/50 or 24/60 Vac	1/8" BSP
DM14	-	45 mm	24 Vdc	1/8" BSP
DM21	-	63 mm	230/50 or 240/60 Vac.	¼" BSP
DM22	-	63 mm	110/50 or 120/60 Vac	¼" BSP
DM23	-	63 mm	24/50 or 24/60 Vac	¼" BSP
DM24	-	63 mm	24 Vdc	¼" BSP
DM31	-	90 mm	230/50 or 240/60 Vac.	¼" BSP
DM32	-	90 mm	110/50 or 120/60 Vac	¼" BSP
DM33	-	90 mm	24/50 or 24/60 Vac	¼ BSP
