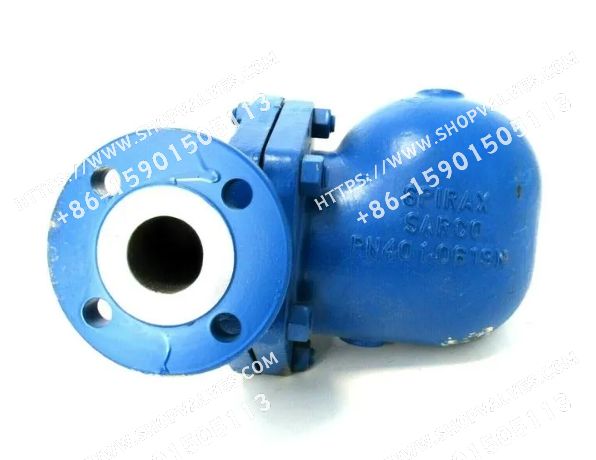

Spirax Sarco FT47-4.5 FT47-10 FT47-14 FT47-21 FT47-32 Ductile Iron Ball Float Steam Trap
Brand authorization
- Rapid response service
- Professional team support
- Flexible return and exchange policy
Description
Spirax Sarco FT47 float steam traps (DN15-DN50) in ductile iron with built-in automatic air venting and flanged connections. Available for horizontal or vertical installation, the vertical model FT47V and the horizontal FT47 (up to 21 bar g) are available with a manually adjustable needle valve for breaking steam vapor locks, model FT47-C. The cover can be drilled with 3/8" BSP or NPT threads for installation of a venting valve, if desired. Body and bonnet castings are manufactured in a TÜV certified foundry.
(an official) standard
This product complies with the European Pressure Equipment Directive 97/23/EC and can be marked upon request.
Certification
This product can be supplied with the manufacturer's test report and also with an EN10204 3.1 certificate. If a certificate is required, please specify when ordering.
Sizes and pipe connections
- Caliber: DN15, DN20, DN25, DN40 and DN50.
- Connection: Horizontal mounting type, when facing the valve body, the flow direction is from left to right for DN15-DN25, and from right to left for DN40 and DN50; Vertical mounting type, the flow direction is from top to bottom. Standard flanges are EN1092 PN40 and PN25, flange end dimensions in accordance with EN 26554 (series 1); flanges ANSI B16.5 class 150 can be supplied as required, flange end dimensions in accordance with EN 26554 (series 1), bolt holes in ANSI flanges are UNC threaded.
Scope of work
The products have specific use area restrictions, e.g. they cannot be used in the area of A - B flanges EN 1092 PN40, A - C flanges ANSI 150, otherwise the internal parts may be damaged.
| Valve body design conditions | PN40 |
|---|---|
| PMA Maximum Allowable Pressure | 40 bar g @ 100 °C |
| TMA Maximum Allowable Temperature | 300°C @ 28 bar g |
| Minimum permissible temperature | -10 °C |
| PMO Maximum Working Pressure under Saturated Steam | 32 bar g @ 239 °C (PMO DPMX for DN40 and DN50 valves) |
| TMO Maximum Operating Temperature | 285°C @ 29 bar g |
| Minimum Operating Temperature (For low temperature applications, consult Spirax Sarco) | 0 °C |
| DPMX Maximum Differential Pressure (DN15, 20, 25) | 4.5 bar, 10 bar, 14 bar, 21 bar, 32 bar |
| DPMX Maximum Differential Pressure (DN40, 50) | 4.5 bar, 10 bar, 21 bar, 32 bar |
| Design maximum cold hydraulic test pressure | 60 bar g |
| Test pressure limit after internal installation | 48 bar must not be exceeded, otherwise the internal parts will be damaged. |
material (that sth is made of)
| Item | Part | material (that sth is made of) |
|---|---|---|
| 1 | valve body | Ductile iron, DIN 1693 GGG 40.3 |
| 2 | bolt (male component of nut and bolt) | Steel, DIN 17420 21 Cr Mo V57 |
| Nuts (DN15, DN20 and DN25) | Steel, EN 10269 25 Cr Mo 4 | |
| Nuts (DN40 and DN50) | Steel, DIN 17420 24 Cr Mo 5 | |
| 3 | Bonnet Gasket | Reinforced flake graphite |
| 4 | bonnets | Ductile iron, DIN 1693 GGG 40.3 |
| 5 | Seats (DN15, DN20 and DN25 horizontal connections) | Stainless steel, BS 970 431 S29 |
| Seats (DN15 and DN20 vertical connections) | Stainless steel, BS 3146 Pt2 ANC2 | |
| Valve seat (main valve unit with anti-erosion baffle) | Stainless steel, BS 970 416 S37 | |
| 6 | Seat gasket (DN15, DN20 and DN25) | Stainless steel, BS 1449 304 S11 |
| Main valve assembly gasket (DN40 and DN50) | Reinforced flake graphite | |
| 7 | Pivot bracket assembly screws (DN15, DN20 and DN25) | Stainless steel, BS 4183 18/8 |
| Main valve assembly bolt (DN40) | Stainless steel, BS 970 302 S25 | |
| Main valve assembly bolt nut (DN50) | Stainless steel, BS 970 431 S29 | |
| 8 | Float linkage structure | Stainless steel, BS 1449 304 S16 |
| 9 | Air venting valve unit | stainless steels |
| 10 | SLR device | Stainless steel, BS 970 303 S31 |
| 11 | SLR Gasket | Steel, BS 1449 CS 4 |
| 12 | SLR Seal | plumbago |
| 13 | brackets | Stainless steel, BS 1449 304 S16 |
| 14 | Pivot bracket | Stainless steel, BS 1449 304 S16 |
| 15 | fulcrum pin | stainless steels |
| 16 | Internal baffle (DN40 and DN50 only) | Stainless steel, BS 1449 304 S16 |
| 17 | Evacuation Seat Gasket | Stainless steel, BS 1449 409 S19 |
| 18 | Anti-erosion baffle | Stainless steel, BS 970 431 S29 |
weights
| caliber | weights |
|---|---|
| DN15 | 10.8kg |
| DN20 | 10.8kg |
| DN25 | 15.0kg |
| DN40 | 33.0kg |
| DN50 | 34.0kg |
engine displacement (volume of air fuel mixture drawn in during one cycle)
See TI-S02-36 for details.
Security information, installation and maintenance
Refer to the Installation and Maintenance Guide (IM-S02-30) supplied with the product for detailed information. Install in the direction of flow as shown on the valve body, making sure the float arm is positioned horizontally so that the float can rise and fall freely and vertically.
deal with
This product is recyclable and does not harm the environment when disposed of properly.
Ordering Instructions
Example: 1 - Spirax Sarco DN25 FT47-14 Float Steam Trap, EN1092 PN40 flange connection, ductile iron body, with air venting device.
