Description

Spirax Sarco FT44 carbon steel float steam traps (DN15-DN50) with stainless steel internals, built-in automatic air venting and flanged connections. The body and bonnet castings are made in a TÜV certified foundry. The valves can be serviced in-line without dismantling the piping. Horizontal connection, vertical connection type FT44V (flow direction from top to bottom). FT44 uses BP99/32 liquid bladder and can be applied to superheated steam with superheat degree of 150℃@0 bar g,50℃@32 bar g. The valve can be used with a BP99/32 liquid bladder.

(an official) standard

This product complies with the European Pressure Equipment Directive 97/23/EC and is available with marking on request.

options (as in computer software settings)

Manually adjustable needle valve (model FT44-C) for use with horizontally connected FT44's only. This option also offers a steam lock breaking function (SLR), consult Spirax Sarco for more information. If required, 3/8" BSP or NPT tapped holes can be drilled in the top of the bonnet for a counterbalance pipe or 3/8" BSP or NPT tapped holes can be drilled in the bottom of the bonnet for a drain valve, to be specified at time of order.

Certification

This product can be supplied with EN10204 3.1 certificate. Note: If a certificate is required, please specify when ordering.

Sizes and pipe connections

  • Caliber: DN15,DN20,DN25,DN40 and DN50.
  • Horizontal mounting type: flow direction when facing the valve body DN15-25 from left to right, DN40 and DN50 from right to left. Standard flange EN1092 PN40, flange end dimensions in accordance with EN26554 (series 1), flange connection JIS/KS20 ANSI B 16.5class150 and 300 extension end dimensions are available on request.
  • Vertical installation type: flow direction from top to bottom. Standard flanges EN1092 PN40, flange end dimensions in accordance with EN26554 (series 1), flanges JIS/KS and ANSI B16.5class150 and Class 300 flanges are available on request. bolt holes for ANSI flanges are UNC threads, and bolts for JIS/KS flanges are metric threads.

Scope of work

  • Valve body design conditions: PN40
  • Maximum permissible pressure for PMA: 40 bar g@ 100°C
  • TMA Maximum Allowable Temperature: 300°C @ 27.5 bar g
  • Minimum permissible temperature: -10°C
  • PMO Maximum working pressure under saturated steam: 32 bar g @ 239°C Note: PMO equals DPMX for DN40 and DN50 valves.
  • Maximum TMO operating temperature: 285°C @ 28.5 bar g
  • Minimum operating temperature (for low temperature applications, consult Spirax Sarco): 0°C
  • Caliber DN15, DN20, DN25: FT44-4.5 4.5 bar; FT44-10 10 bar; FT44-14 14 bar; FT44-21 21 bar; FT44-32 32 bar
  • Caliber DN40, DN50: FT44-4.5 4.5 bar; FT44-10 10 bar; FT44-14 14 bar; FT44-21 21 bar; FT44-32 32 bar
  • Design Maximum Cold Water Test Pressure: 60 bar g NOTE: Test pressure must not exceed DPMX after internal components are installed. NOTE: The operating pressure of this trap must not exceed 48 bar or internal components will be damaged.

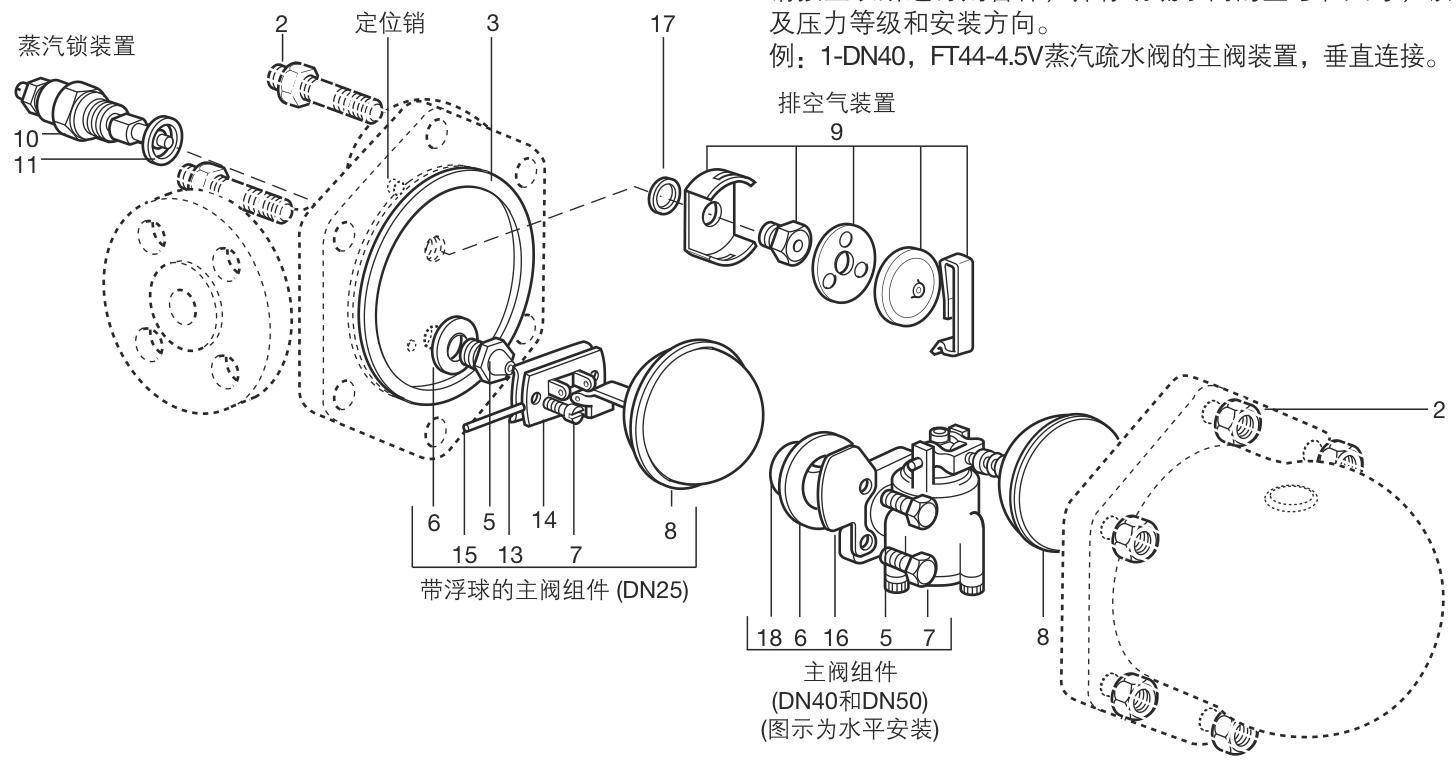

material (that sth is made of)

Item Part material (that sth is made of)
1 valve body Carbon Steel 1.0619+N/WCB
2 Bonnet bolts Steel BS 4882 B7M
Bonnet nut Steel BS 3692 Gr. 8
3 Bonnet Gasket Reinforced flake graphite
4 bonnets Carbon Steel 1.0619+N/WCB
5 acne DN15, DN20 and DN25 horizontal connections, DN15 and DN20 vertical connections: stainless steel BS 970 431 S29; DN40 and DN50: stainless steel BS 3146 Pt2 ANC2 BS 970 416 S37
6 Seat Gasket DN15, DN20 and DN25: stainless steel BS 1449 304 S11; DN40 and DN50: reinforced flake graphite
7 Pivot bracket assembly screws DN15, DN20 and DN25: stainless steel BS 4183 18/8; DN40: stainless steel BS 970 302 S25; DN50: stainless steel BS 970 431 S29
8 Float linkage structure Stainless steel BS 1449 304 S16
9 Air venting valve unit stainless steels
10 SLR device Stainless steel BS 970 303 S31
11 SLR Gasket Steel BS 1449 CS4
12 SLR Seal plumbago
13 brackets Stainless steel BS 1449 304 S16
14 Pivot bracket Stainless steel BS 1449 304 S16
15 fulcrum pin stainless steels
16 Internal baffle (DN40 and DN50 only) Stainless steel BS 1449 304 S16
17 Evacuation Seat Gasket Stainless steel BS 1449 409 S19
18 Anti-erosion baffle Stainless steel BS 970 431 S29

weights

caliber Weight (kg)
DN15 10.8
DN20 10.8
DN25 15.0
DN40 33.0
DN50 34.0

Security information, installation and maintenance

Refer to the Installation and Maintenance Guide (IM-S02-30) supplied with the product for detailed information. Installation Tip: Follow the flow direction device shown on the valve body, making sure the float arm is positioned horizontally to ensure that the float is free to rise and fall vertically.

deal with

This product is recyclable and does not harm the environment when disposed of properly.

Ordering Instructions

Example: 1 - Spirax Sarco DN25 FT44-14 Float Steam Trap, EN1092 PN40 flange connection, carbon steel body, with air venting device.
