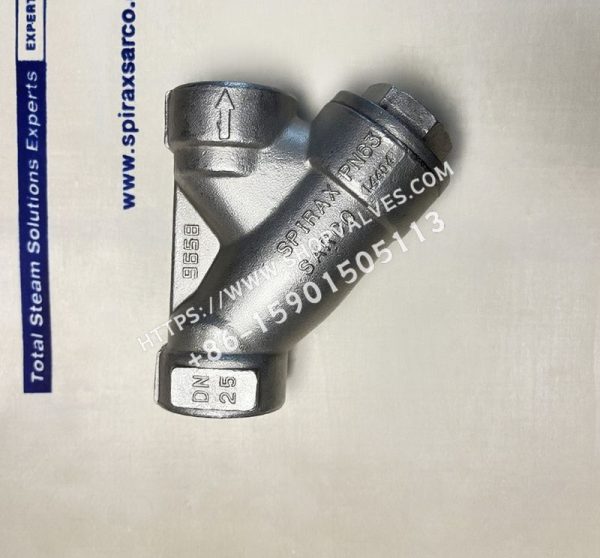

Spirax Sarco Fig16 and Fig16L Austenitic Stainless Steel Y-Filters

Description

Spirax Sarco Fig16 and Fig16L Y-strainers are made of austenitic stainless steel with threaded connections, AISI 316 for Fig16 and AISI 316L for Fig16L. The standard stainless steel strainer mesh has a pore size of 0.8 mm, while other pore sizes and mesh sizes as well as Monel alloy strainer mesh are available, and a threaded hole can be drilled in the strainer cap for connection to a drain or discharge valve, according to the requirements. The filter cap can be drilled with threaded holes for connecting with a sewage or discharge valve as required.

(an official) standard

This product is fully compliant with the European Pressure Equipment Directive 97/23/EC and can be marked if required.

Certification

Fig16 can be supplied with manufacturer's test report.Fig16L can be supplied with material certificate EN 10204 3.1.Note: If certificate is required, please specify when ordering.

Sizes and pipe connections

3/8", ½", ¾", 1", 1¼", 1½" and 2"; BSP or NPT Screwed; BS 3799 Class 3000 lb socket weld (Fig16L only).

option

• filter
  • Stainless Steel Filter Mesh: Aperture 1.6, 3mm; mesh size 40, 100, 200.
  • Monel Alloy Filter: Aperture 0.8mm, 3mm; mesh size 100.
• Sewage or Drain Valve Connection: The bonnet can be drilled with threaded holes for installation of a drain or discharge valve.
  • 3 / 8 "and ½" filters: Drain valve ¼", discharge valve ¼".
  • ¾ "Filter: Drain valve ½", discharge valve 3/8".
  • 1" Filter: Drain valve ½", discharge valve ½".
  • 1¼" and 1½" Filters: Drain valve 1", discharge valve ¾".
  • 2" Filter: Drain valve 1¼", discharge valve ¾".

restrictive condition

• Maximum design conditions for valve body: ANSI 600
• PMA Maximum Allowable Pressure: 82.7 bar g@37.7 °C
• TMA Maximum Allowable Temperature: 398.8 °C @46.2 bar g
• Minimum working temperature: -29 ℃
• PMO Maximum Saturated Steam Pressure: 50 bar g@-29 °C
• TMO Maximum Operating Temperature: 398.8 °C @ 46.2 bar g
• Minimum working temperature: -29 ℃
  Note: Consult Spirax Sarco for lower operating temperatures.
• Design maximum cold test pressure: 125 bar g

material (that sth is made of)

Item	Part	Material (Fig16)	Material Description	Material (Fig16L)
1	valve body	austenitic stainless steel	Gr.CF8M(316) ASTM A351	austenitic stainless steel
2	bonnet	austenitic stainless steel	Gr.CF8M(316) ASTM A351	austenitic stainless steel
3	Cap Gasket		Reinforced flake graphite
4	filter		austenitic stainless steel	316L

safety information

For detailed information, refer to the Installation and Maintenance Guide (IM-S60-17) supplied with the product.
WARNING: There is a thin stainless steel support ring in the gasket of the filter cover Carefully remove.

take care of

This product is recyclable and does not harm the environment when disposed of properly.

place an order

Example:1-Spirax Sarco 1½" Fig 16 filter, Screwed BSP, 0.8mm pore size stainless steel screen.
