Spirax Sarco Fig 12 SG Iron Strainer

Description

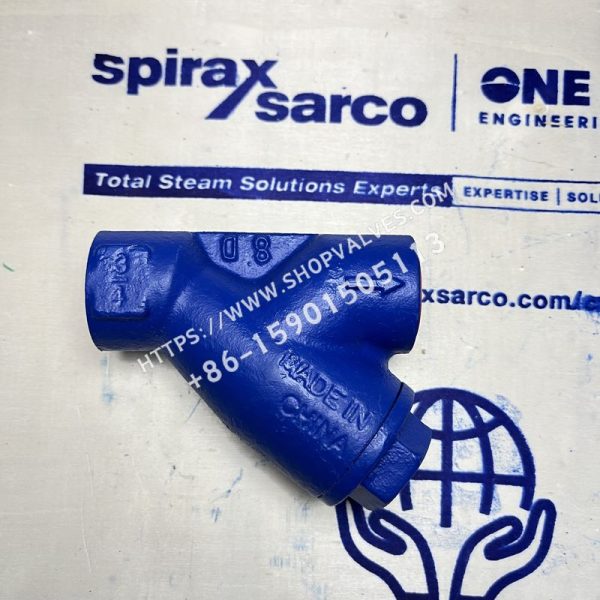

Spirax Sarco Fig12 Ductile Iron Strainer, ductile iron with threaded connection. Standard stainless steel strainer with 0.8mm pore size, other pore sizes and mesh sizes as well as alloy strainer are available. The filter bonnet can be drilled with threaded holes for connecting a drain or discharge valve as required.

Available Models

Available types	SKU
1/2" Fig12 BSP	1630048
1/2" Fig12 BSP 100M	1636645
3/4" Fig12 BSP	1630148
3/4" Fig12 BSP 100M	1636745
1" Fig12 BSP	1630248
1" Fig12 BSP 100M	1636845
1 1/4" Fig12 BSP	1630348
1 1/4" Fig12 BSP 100M	1636945
1 1/2" Fig12 BSP	1630448
1 1/2" Fig12 BSP 100M	1637045
2" Fig12 BSP	1630548
2" Fig12 BSP 100M	1637145

(an official) standard

This product complies with the European Pressure Equipment Directive 97/23/EC and can be marked if required.

Certification

A "Test Report" is available for this product. Note: If required, please specify when ordering.

Sizes and pipe connections

½", ¾", 1", 1¼", 1½", 2", 2½", 3", BSP or NPT Screwed.

selectable

• filter::

  • Stainless Steel Filter Mesh: Aperture 1.6, 3mm, mesh size 40, 100, 200; also available in aperture 0.8, 3mm.
  • Monel Alloy Filter: Aperture 0.8, 3mm, mesh 100.

• Sewage or Drain Valve Connection::
  The bonnet can be drilled for threads to allow installation of a drain or discharge valve with the following hole sizes:

  Filter caliber	bleeder valve	venting valve
  ½"	¼"	¼"
  ¾" and 1"	½"	½"
  1¼" and 1½"	1"	¾"
  2"-3"	1¼"	¾"

restrictive condition

Valve body design conditions	PN25
PMA Maximum Allowable Pressure	25 bar g @ 120 °C
TMA Maximum Allowable Temperature	260 °C @ 19.5 bar g
Minimum permissible temperature	-10 °C
PMO Maximum Working Pressure	21 bar g
TMO Maximum Operating Temperature	260 °C @ 19.5 bar g
Minimum operating temperature (2½"-3")	0°C
Minimum operating temperature (½"-2")	-10°C
Note: Maximum cold hydrostatic test pressure	38 bar g

material (that sth is made of)

Item	Part	material (that sth is made of)
1	valve body	Ductile iron DIN 1693 GGG 40
2	bonnet	Carbon steel 1.0460 and ASTM A105N
3	Cap Gasket	Reinforced flake graphite
4	filter	Stainless Steel 316L
5	bolt (male component of nut and bolt)	Carbon steel BS 3692 Gr.8.8
6	spread litter in a cowshed, pigsty etc	Carbon Steel BS 4320 TI Form A

Flow coefficient (Cv)

caliber	½"	¾"	1"	1¼"	1½"	2"	2½"	3"
Hole diameter 0.8, 1.6, 3mm	3.6	11	15.5	26	41	68	82	115
Mesh 40, 100	3.6	11	15.5	26	41	68	82	115
Number of items 200	3.6	9	13.0	21	35	55	66	93

Conversion formula: Cv(UK) = Kv x 0.963; Cv(US) = Kv x 1.156

Weight (approximate)

caliber	Weight (kg)
½"	0.47
¾"	0.77
1"	1.40
1¼"	2.15
1½"	3.30
2"	5.10
2½"	7.30
3"	7.50

Security information, installation and maintenance

Refer to the Installation and Maintenance Guide (IMS60-17) supplied with the product for detailed information.

• warnings: There is a thin stainless steel support ring in the gasket of the filter cover, remove it carefully.
• mounting: The filter should be installed horizontally in the direction of flow on the housing. When applied to horizontal piping for steam or gas, the filter body should be kept in a horizontal plane, while in liquid systems, the valve body should be in a vertical downward position. To facilitate maintenance and replacement, suitable shut-off valves should be installed upstream and downstream of the filter. Before installation, remove all protective parts, slowly open the shut-off valve until it reaches the normal working condition and check for leakage.
• protect and maintain: The filter can be serviced directly on the pipeline if safety procedures are observed. When servicing, it is recommended to use new gaskets and spare parts.
• take care of: This product is recyclable and does not harm the environment when disposed of properly.

place an order

Example: 1 - Spirax Sarco 2" Fig 12 Ductile Iron Strainer, BSP Threaded Connection, Stainless Steel Screen Pore Size 0.8mm.
