Spirax Sarco BT1050 Boiler Drain Controller

Description

The Spirax Sarco BT1050 Boiler Drain Controller is a timer used to control the bottom drain valve. It allows the bottom drain valve to open and remove deposited solids that could otherwise build up and eventually cause boiler damage.The BT1050 has three timers that can be set for different cycle periods and durations, e.g., Monday-Friday, with a maximum of 3 drain cycles per day. This timer can also be set to prioritize the boiler discharge.

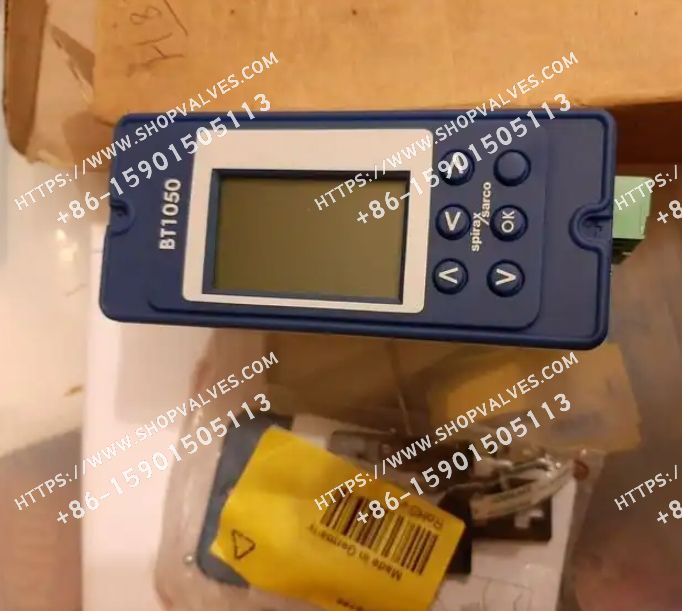

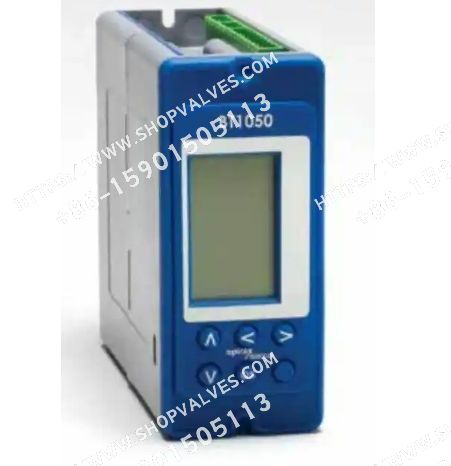

It is available for panel, DIN rail or baseboard mounting and is powered by a 99 to 264 volt AC power supply. The front panel has an LCD display and five button keypad. A test function gives the user a diagnostic tool.The BT1050 can communicate with neighboring devices via infrared, it can be designated as a slave or master, and it connects to a two- or four-wire EIA/TIA-485 multipoint network. Up to 9 BT1050s (or BT1000s) can be installed and used for multi-outlet boiler drains.

accreditation

The BT1050 complies with the EMC Directive 2014/30/EU and its requirements. This product is suitable for use in Class A environments (e.g. industrial). The product has a detailed EMC assessment, reference number UK Supply BH BT1050 2008.
The BT1050 complies with the Low Voltage Directive (2014/35/EU) and meets the requirements of the standard: - EN 61010-1:2001 Safety requirements for electrical equipment used in measurement, control and laboratories.
BT1050 is UL listed (open).

key feature

• Specifically designed for bottom drainage.
• Three independently adjustable timers.
• Debugging is easy - quick setup options.
• Wide range of power supply - 110-240Vac.
• The timer prevents the boiler from draining continuously and rapidly.
• Alarm when the valve cannot be opened or closed.
• UL and TÜV certified.

Technical Parameters

parameters	particulars
Supply Voltage	110 - 240Vac, 50/60HZ
power consumption	7.5W (max)
operating environment	Indoor use only
highest altitude	Altitude 2000 meters
Ambient temperature range	0 - 55 °C
Maximum relative humidity	80% up to 31 °C decreasing linearly to 50% at 40 °C
Overvoltage category	III
Sealing class (front panel only)	NEMA Type 4 hose only (certified by UL) and IP65 compliance (certified by TRAC Global)
LVD (security)	Electrical Safety EN 61010-1 UL61010-1, 3rd Edition, 2012-05
EMC	CAN/CSA-C22.2 No. 61010-1, 3rd Edition, 2012-05 Immunization industry sites: EN 61326: A1 + A2 Annex A Table 1 Emissions: EN 61326: A1 + A2 Class A Table 4
Housing Material	polycarbonate
Front Panel Material	Silicone Rubber, 60shore
solder	Tin/lead (60/40%)
Power and Signal Connectors	Plug-in terminals with screw connectors. Note:Use only terminals supplied by Spirax Sarco, otherwise safety and approvals will be reduced.
Cable Size	0.2 mm² (24 AWG) - 2.5 mm² (12 AWG)
Stripping Length	5 - 6 mm
Cables/wires and connectors data (connection) loops	Number of cores: 2 Size: 1 - 1.5 mm² (18 - 16 AWG) Maximum length: 100 meters Recommended type: Prysmian (Pirelli) FP200, Delta Crompton Firetuf OHLS
RS485 communication cable/wiring	Type: EIA RS485 twisted pair Shielding Type: Shielded, either LAN Cat 5 or Cat 5E ScTP (shielded), FTP (sheet), or STP Alpha 6413 or 6414 but limited to 600 meters Logarithm: 2 or 3 Size: 0.23 mm² (24 AWG) Maximum length: 1200 m (4000 ft) Recommended type: Alpha 6413 or 6414
Input - Switch Box	Maximum voltage: 32Vdc (no load, open circuit) Maximum current: 3mAdc (short circuit)
Input - Latch (Connect)	Maximum voltage: 32Vdc (no load, open circuit) Maximum pull-down voltage: 0.25 Vdc Maximum current: 1.5 mAdc
RS485	Physical layer: RS485 4-wire full-duplex or 2-wire half-duplex Protocol layer: Modbus RTU format Insulation: 60 Vac/dc Output rate: up to 10 fps
Battery (clock calendar)	Type: AA (PCB) lithium thionyl chloride (lithium content 0.65 g) Stand life: 10 years battery powered @ Tamb: 25 °C Operating life: 10 years power supply 35 hrs/week @ Tamb: 55 °C
infrared (ray)	Physical layer: IrDA Baud rate: 38400 Range: 10 cm Working angle: 15 ° Eye Safety Information: Abstract: EN 60825-12 : 2007 - Safety of laser products not exceeding the radioactive limits of Class 1 (AEL)
relay (electronics)	Contacts: 2 x Single Pole Changeover Relays (SPCO) Rated voltage (max): 250 Vac Load - Resistive Load: 3 amp @ 250 Vac Load - Inductive: 1 amp @ 250 Vac Load - AC Motor Load: ¼ HP (2.9 amp) @ 250 Vac 1 / 10 HP (3 amp) @ 120 Vac Pilot Workload: C300 (2.5 amp) - Control Circuit / Coil Electrical life (action): 3 x 10 5 or greater, depending on load Mechanical life (action): 30 x 10 6

weights

Weight (approximate) 400g

Security information, installation and maintenance

This document does not contain sufficient information to safely install the product. Refer to the Installation and Maintenance Guide supplied with the product which has detailed wiring, commissioning and operating instructions. Please note the Safety Information Sheet IM-GCM- 10. and any national regulations relating to sewage discharge. In the UK. health and safety guidance note PM60. in particular be aware of the work hazards of having one boiler switched off whilst the others are running.

• warnings::
  • Disconnect the power supply before installing the controller because the power supply terminals are exposed.
  • Use only the screws supplied with the product.
  • Do not install outdoors without additional weather protection.
  • Do not drill holes or use self-tapping screws in the product.
• take note ofA 15 mm gap is required between multiple controllers for cooling.
• Installation/Environmental Conditions: Install the product in an environment that minimizes the effects of heat, vibration, shock and electrical interference. The product must be mounted in a suitable industrial control panel or fire rated enclosure to provide protection from impact and the environment. A minimum of IP54 (EN 60529 standard) or Types 3, 3S, 4, 4X, 6, 6P and 13 (UL50/NEMA 250) is required. The product can be DIN rail, base plate board or panel mounted. Instrument bezels are available.

Product Description

Discharge timer, three integrated timers, LCD display, valve fault alarm and infrared communication.

How to Order

Example: 1 x Spirax Sarco BT1050 Drain Timer
